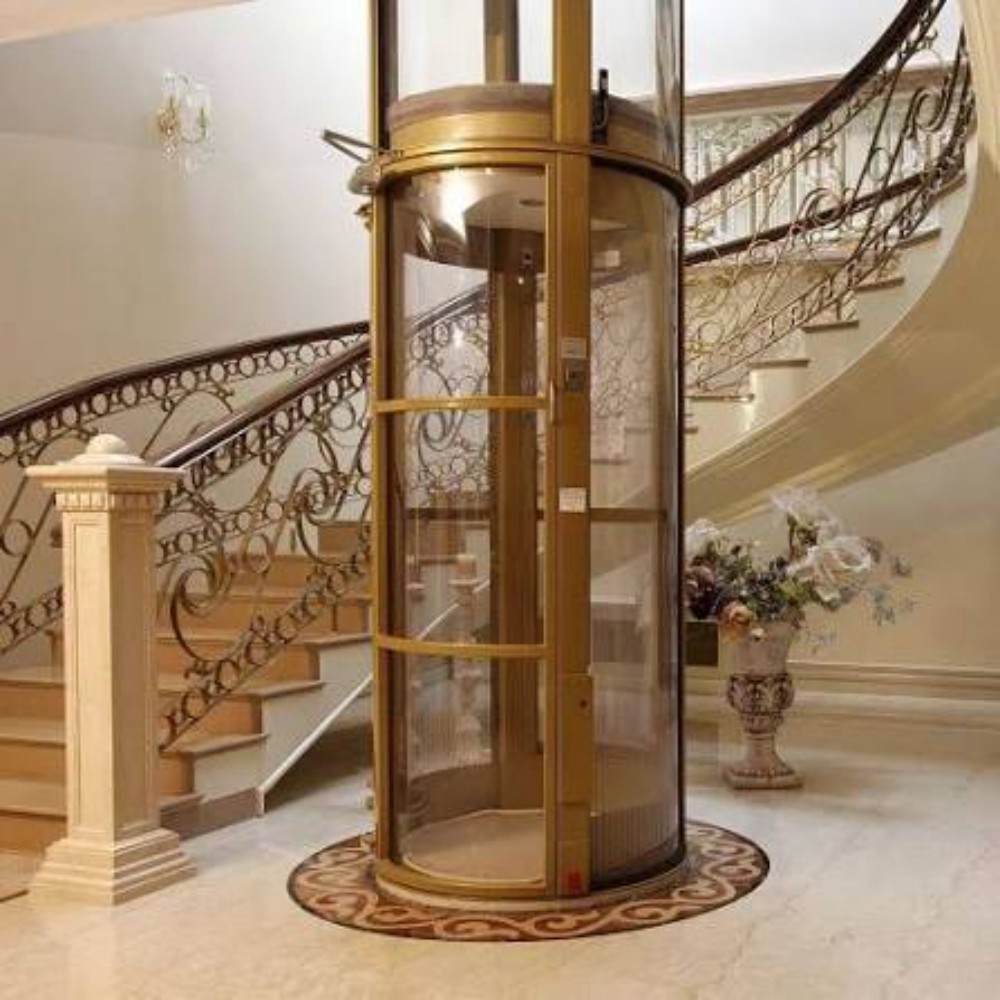

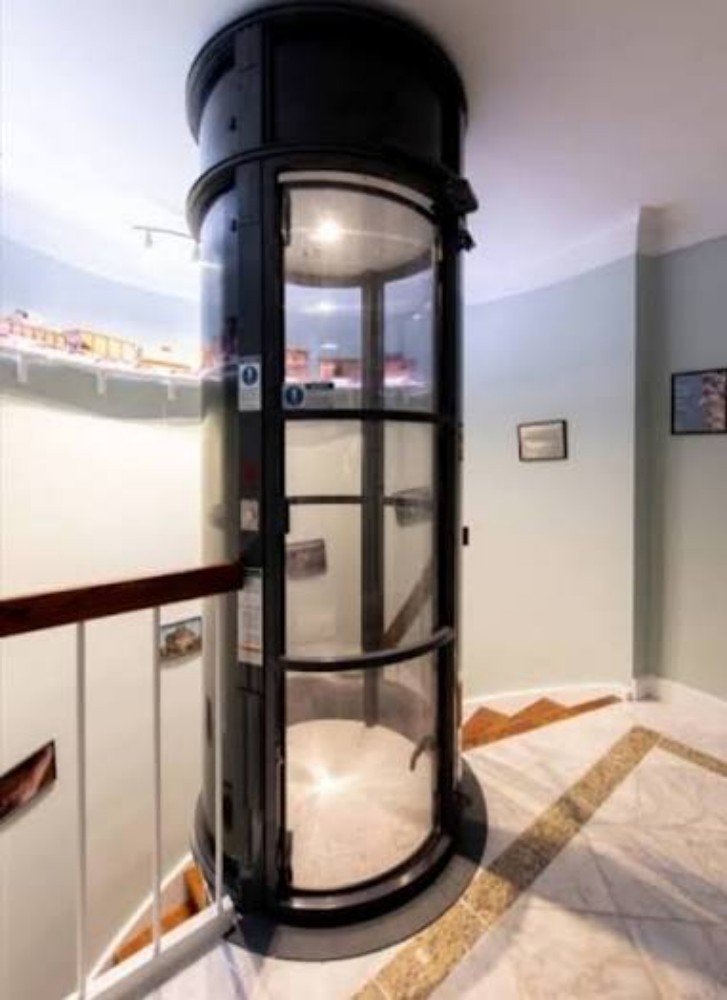

Vacuum Lift

• Capacity
• 150 Kg

• Control Device
• Calling Box

• Drive Type
• AC

• Load Capacity
• 150 Kilograms (kg)

• Material
• Other

• Max. Lifting Height
• 10 Meter (m)

• Max. Lifting Weight
• 150 Kilograms (kg)

• Mechanism Type
• Rack-and-Pinion Elevator

• Power Supply
• AC

• Safety Device
• Down Over Speed Protection Device, Safety Sensor

• Speed
• 0.5 m/s

• Type
• Passenger Elevators

• Voltage
• 5 Ampere (amp)

• Working Temperature
• 37 Celsius (oC)

• Capacity
• 2-3 persons

• Car Dimension
• Diameter approx. 930 mm

• Control Device
• Other, Microprocessor Control

• Door Opening Size
• Entrance width approx. 520 mm

• Drive Type
• Other, Vacuum Drive

• Hoist Way Size
• No Hoistway Required (Self-contained Cylinder)

• Inclination
• Vertical (0 degree)

• Load Capacity
• 150 - 250 kg

• Machine Room Size
• Machine-Room Less

• Material
• other Sheet, Polycarbonate and Aluminum

• Max. Lifting Height
• Up to 15 meters

• Max. Lifting Weight
• 220 kg

• Mechanism Type
• Other, Pneumatic / Air Pressure Based

• Noise Level
• 50 dB

• Overhead Height
• Minimum 2400 mm

• Pit Depth
• No Pit Required

• Power Supply
• Single Phase or Three Phase Power Supply

• Safety Device
• Other, Emergency Stop, Alarm, Interlock, Backup Power

• Speed
• 0.15 - 0.30 m/s

• Type
• Other, Pneumatic Vacuum Elevator

• Usage
• Other, Residential / Small Offices

• Voltage
• 230V / 50Hz

• Working Temperature
• 0C - 40C
